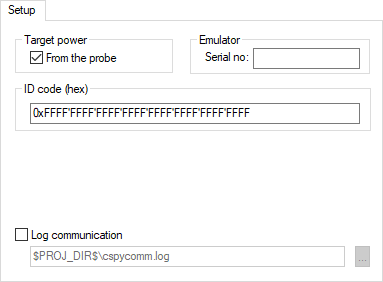

Target power

Select From the probe to specify that the supply voltage to your target device will be supplied by the probe.

Emulator

If more than one debug probe is connected to the host computer, use the Serial no option to select the correct one.

ID code (hex)

The hexadecimal ID code protects certain devices with an authentication check before the debug session is started. If an incorrect ID code is entered, a connection error will occur.

For more information, see the hardware manual for your device.

Log communication

Logs the communication between C-SPY and the target system to a file. To interpret the result, detailed knowledge of the interface is required.
