Hardware installation
For best results, follow these steps.
Recommended power-up sequence
For information about the hardware installation, see the documentation supplied with the target system from the manufacturer. The following power-up sequence is recommended to ensure proper communication between the target board, debug probe, and C-SPY:
Connect the probe to the target board.
Connect the USB cable to the debug probe.
Power up the debug probe, if it is not powered via USB.
Power up the target board, if it is not powered via the debug probe.
Start the C-SPY debug session.

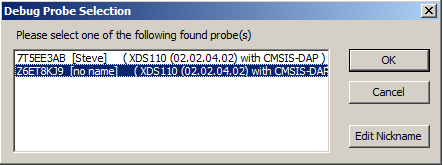

If more than one debug probe is connected to your computer, the Debug Probe Selection dialog box is displayed. In the dialog box, select the probe to use and click OK. For more information, see ‑‑drv_communication.
To give the probe a nickname, select the probe in the dialog box and click the Edit Nickname button. The nickname is saved locally on your computer and is available when opening other projects.
Note
The Edit Nickname button might not be available for the C-SPY driver you are using.
