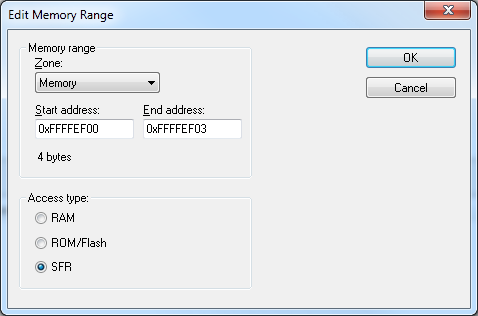

Edit Memory Range dialog box for the C-SPY simulator

In this section:

What do you want to do?


The Edit Memory Range dialog box is available from the Memory Configuration dialog box.


Use this dialog box to specify your own memory address ranges, and their access types.

Requirements

The C-SPY simulator.

Memory range

Defines the memory address range specific to your device:

Zone

Selects a memory zone, see C-SPY memory zones.

Start address

Specify the start address for the memory address range, in hexadecimal notation.

End address

Specify the end address for the memory address range, in hexadecimal notation.

Access type

Selects an access type for the memory address range. Choose between:

  • RAM, for read/write memory

  • ROM/Flash, for read-only memory

  • SFR, for SFR read/write memory.
