Data breakpoints dialog box (for C-SPY hardware debugger drivers)

In this section:

What do you want to do?

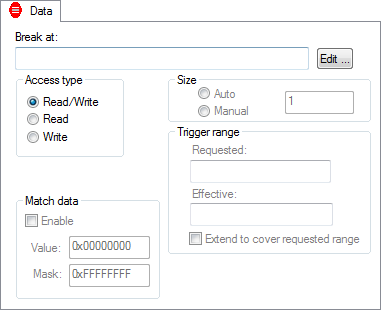

The Data breakpoints dialog box is available from the context menu in the editor window, Breakpoints window, the Memory window, and in the Disassembly window.


Use the Data breakpoints dialog box to set a data breakpoint, see Setting breakpoints using the dialog box. Data breakpoints never stop execution within a single instruction. They are recorded and reported after the instruction is executed.

Requirements

Any C-SPY hardware debugger driver.

Break At

Specify the data location of the breakpoint in the text box. Alternatively, click the Edit button to open the Enter Location dialog box, see Enter Location dialog box.

Access Type

Selects the type of memory access that triggers the breakpoint:

Read/Write

Reads from or writes to location.

Read

Reads from location.

Write

Writes to location.

Size

These options are not available in the current version of the product.

Match data

These options are not available in the current version of the product.

Trigger range

These options are not available in the current version of the product.
