IAR Embedded Workbench for RL78 5.20

Setup

In this section:

What do you want to do?

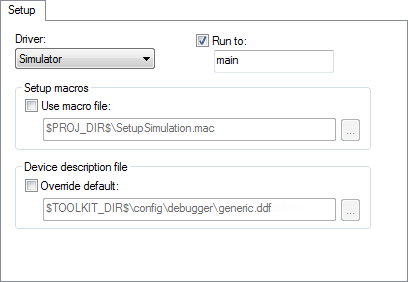

The general Setup options select the C-SPY driver, the setup macro file, and device description file to use, and specify which default source code location to run to.

Driver

Selects the C-SPY driver for the target system you have.

Run to

Specifies the location C-SPY runs to when the debugger starts after a reset. By default, C-SPY runs to the main function.

To override the default location, specify the name of a different location you want C-SPY to run to. You can specify assembler labels or whatever can be evaluated as such, for example function names.

See also Executing from reset.

Setup macros

Registers the contents of a setup macro file in the C-SPY startup sequence. Select Use macro file and specify the path and name of the setup file, for example SetupSimple.mac. If no extension is specified, the extension mac is assumed. A browse button is available.

Device description file

A default device description fileis selected automatically based on your project settings. To override the default file, select Override default and specify an alternative file. A browse button is available.

For information about the device description file, see Modifying a device description file.
