Cores window

In this section:

The Cores window is available from the View menu.

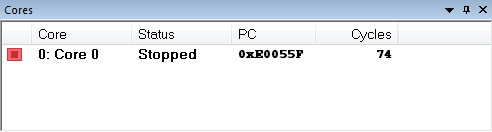

This window displays information about the executing core, such as its execution state. This information is primarily useful for IAR Embedded Workbench products that support multicore debugging.

Display area

A row in this area shows information about a core, in these columns:

Execution state

Displays one of these icons to indicate the execution state of the core:


in focus, not executing


not in focus, not executing


in focus, executing


not in focus, executing


in focus, unknown status


not in focus, unknown status

Core

The name of the core.

Status

The status of the execution, which can be one of Stopped, Running, Sleeping, or Unknown.

PC

The value of the program counter.

Cycles | Time

The value of the cycle counter or the execution time since the start of the execution, depending on the debugger driver you are using.

Context menu

For symmetric multicore debugging, this context menu is available:


These commands are available:

Start Core

Starts the selected core.

Stop Core

Stops the selected core.

Focus on Core (also double-click)

Focuses on the selected core.

Run/Step/Stop affect all cores

The Run, Step, Stop commands affect all cores.

Run/Step/Stop affect current core only

The Run/Step/Stop commands only affect the current core. This menu command is only supported if your device supports it.

Note

These commands are not supported by all target hardware.
