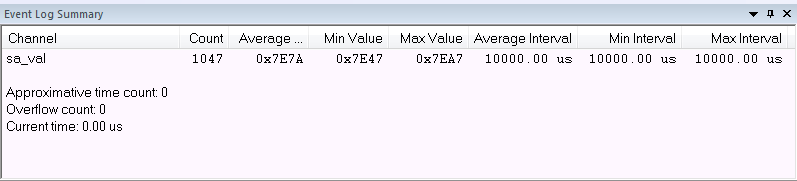

The name of the communication channel for which data is collected.

The number of logged values.

The average value of all received values.

The smallest value of all received values.

The largest value of all received values.

The average time (in cycles) between logged values.

The shortest time (in cycles) between two logged values.

The longest time (in cycles) between two logged values.

The information displayed depends on the C-SPY driver you are using.

For some C-SPY drivers, this information is not displayed or the value is always zero. In this case, all logs have an exact time stamp.

For other C-SPY drivers, a non-zero value is displayed. The value represents the amount of logs with an approximative time stamp. This might happen if the bandwidth in the communication channel is too low compared to the amount of data packets generated by the CPU or if the CPU generated packets with an approximative time stamp.

The information displayed depends on the C-SPY driver you are using.

For some C-SPY drivers, this information is not displayed or the value is always zero.

For other C-SPY drivers, the number represents the amount of overflows in the communication channel which can cause logs to be lost. If this happens, it indicates that logs might be incomplete. To solve this, make sure not to use all C-SPY log features simultaneously or check used bandwidth for the communication channel.

The information displayed depends on the C-SPY driver you are using.

For some C-SPY drivers, the value is always zero or not visible at all.

For other C-SPY drivers, the number represents the current time or cycles—the number of cycles or the execution time since the start of execution.

Enables the logging system. The system will log information also when the window is closed.

Deletes the log information. Note that this will also happen when you reset the debugger.

The name of the channel for which the Events-specific commands below apply. This menu command is context-sensitive, which means it reflects the channel in the Events graph you selected in the Timeline window (one of up to four).

Toggles between displaying the selected value as a signed or unsigned number. Note that this setting also affects the log window.

Toggles between displaying the selected value in decimal or hexadecimal format. Note that this setting also affects the log window.

Displays a standard file selection dialog box where you can select the destination file for the log information. The entries in the log file are separated by TAB and LF characters. An X in the Approx column indicates that the timestamp is an approximation.

Displays the Time column. If the Time column is displayed by default in the C-SPY driver you are using, this menu command is not available.

Displays the Cycles column. If the Cycles column is not supported in the C-SPY driver you are using, this menu command is not available.
