IAR Embedded Workbench for RL78 5.20

Source Browse Log window

In this section:

What do you want to do?

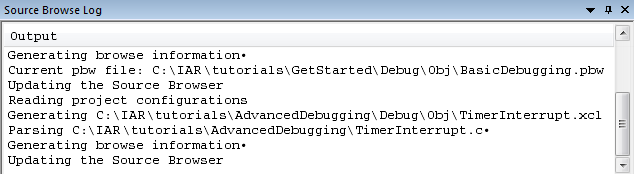

The Source Browse Log window is available by choosing View>Messages.


This window displays the output from the operation of the source browser.

Context menu

This context menu is available:


These commands are available:

All

Shows all messages sent by the source browser. This is mainly useful as input to IAR Technical Support.

Messages

Gives information about what the source browser is doing and any errors that occur during parsing.

Errors

Shows only errors received during the source browsing.

Copy

Copies the contents of the window.

Select All

Selects the contents of the window.

Clear All

Clears the contents of the window.

Live Log to File

Displays a submenu with commands for writing the source browse messages to a log file, and setting filter levels for the log.
