IAR Embedded Workbench for RL78 5.20

CMake options

In this section:

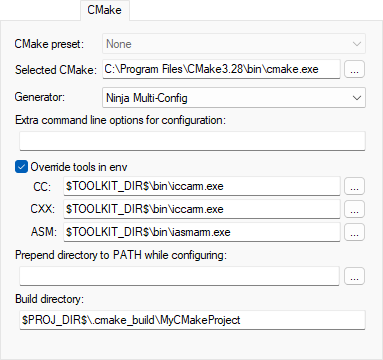

The CMake page contains options for using IAR Embedded Workbench with CMake. The page is available by choosing Project>Options>CMake/CMSIS-Toolbox.

CMake preset

Choose a CMake configure preset for the project. The presets are imported from the project's CMakePresets.json/CMakeUserPresets.json file.

Selected CMake

This is the path to the CMake executable file. Change this path to use another CMake installation.

Generator

Sets the build generator. Choose between:

  • Ninja

  • Ninja Multi-Config

Extra command line options for configuration

Use this field to send command line build options directly to CMake.

Override tools in env

Specify the locations of the C compiler (CC), C++ compiler (CXX), and assembler (ASM) that CMake will use during the build process.

Prepend directory to PATH while configuring

Specify a path to prepend to the PATH environment variables during the configuration of the project. For example, entering the installation path to an older project version makes CMake use that compiler instead of the current one.

Build directory

Specify the location of the CMake build folder.
