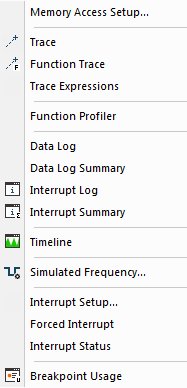

Displays a dialog box to simulate memory access checking by specifying memory areas with different access types, see Memory Access Setup dialog box.

Opens a window which displays the collected trace data, see Trace window.

Opens a window which displays the trace data for function calls and function returns, seeFunction Trace window.

Opens a window which shows timing information for the functions, see Function Profiler window.

Opens a window which logs accesses to up to four different memory locations or areas, see Data Log window.

Opens a window which displays a summary of data accesses to specific memory location or areas, see Data Log Summary window.

Opens a window which displays the status of all defined interrupts, see Interrupt Log window.

Opens a window which displays a summary of the status of all defined interrupts, see Interrupt Log Summary window.

Opens a window which gives a graphical view of various kinds of information on a timeline, see The application timeline.

Opens the Simulated Frequency dialog box where you can specify the simulator frequency used when the simulator displays time information, for example in the log windows. Note that this does not affect the speed of the simulator. For more information, see Simulated Frequency dialog box.

Opens a window from where you can instantly trigger an interrupt, see Interrupt Status window.

Displays a window which lists all active breakpoints, see Breakpoint Usage window.
