IAR Embedded Workbench for RL78 5.20.x

COM Emulator : Setup

In this section:

What do you want to do?

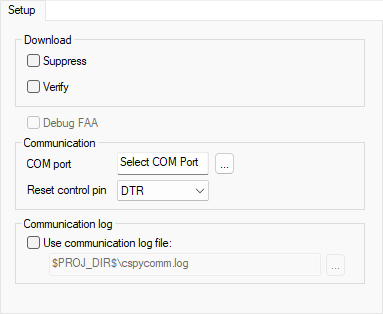

By default, C-SPY downloads the application to RAM or flash when a debug session starts. The Download options on the Setup page let you modify the behavior of the download.

Download

Sets options for the code image to debug.

Suppress

Disables the downloading of code, while preserving the present content of the flash. This command is useful if you want to debug an application that already resides in target memory.

If this option is combined with the Verify option, the debugger will read back the code image from non-volatile memory and verify that it is identical to the built application.

Verify

Verifies that the downloaded code image can be read back from target memory with the correct contents.

Debug FAA

Enables basic debugging for the FAA core (RL78 GREEN DSP V2). Only available for RL78 devices with an FAA.

COM port

Use the browse button to select the active communications port that the debug probe is connected to.

Use communication log file

Logs the communication between C-SPY and the target system to a file. To interpret the result, detailed knowledge of the interface is required.
