IAR Embedded Workbench for RL78 5.20.x

Terminal I/O Log File dialog box

In this section:

What do you want to do?

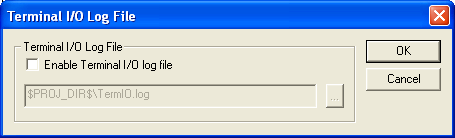

The Terminal I/O Log File dialog box is available by choosing Debug>Logging>Set Terminal I/O Log File.


Use this dialog box to select a destination log file for terminal I/O from C-SPY.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Terminal I/O Log File

Controls the logging of terminal I/O. To enable logging of terminal I/O to a file, select Enable Terminal I/O log file and specify a filename. The default filename extension is log. A browse button is available for your convenience.
