IAR Embedded Workbench for RX 5.20

Debug Log window

In this section:

What do you want to do?

  • Learn about:

  • Get reference information about the Debug Log window, see below the line.

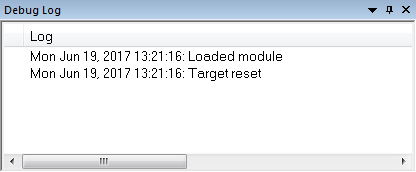

The Debug Log window is available by choosing View>Messages>Debug Log.


This window displays debugger output, such as diagnostic messages, macro-generated output, and information about trace. When opened, this window is, by default, grouped together with the other message windows.

Double-click any rows in one of the following formats to display the corresponding source code in the editor window:

<path> (<row>):<message>
<path> (<row>,<column>):<message>

See also Debug logging.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Context menu

This context menu is available:


These commands are available:

All

Shows all messages sent by the debugging tools and drivers.

Messages

Shows all C-SPY messages.

Warnings

Shows warnings and errors.

Errors

Shows errors only.

Copy

Copies the contents of the window.

Select All

Selects the contents of the window.

Clear All

Clears the contents of the window.

Live Log to File

Displays a submenu with commands for writing the debug messages to a log file and setting filter levels for the log.
