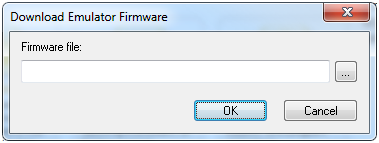

Download Emulator Firmware dialog box

In this section:

The Download Emulator Firmware dialog box is available from the C-SPY driver menu.


Use this dialog box to update the firmware of your emulator if needed. The only reason for doing this manually is if the automatically downloaded firmware is not working correctly.

Requirements

One of these alternatives:

  • The C-SPY E1/E20 driver

  • The C-SPY E2/E2 Lite/EZ-CUBE2 driver.

Firmware file

Browse to the firmware file on your host computer and click OK to download it to your emulator hardware. The emulator firmware files have the filename extension .s and are located in subdirectories of the rx\external\ directory of your product installation.
