IAR Embedded Workbench for RX 5.20

Options dialog box

In this section:

What do you want to do?

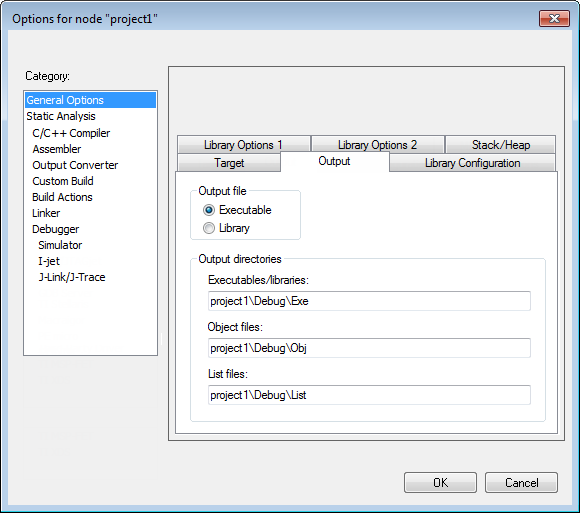

The Options dialog box is available from the Project menu.


Use this dialog box to specify your project settings.

Category

Selects the build tool you want to set options for. The available categories will depend on the tools installed in your IAR Embedded Workbench IDE, and will typically include:

  • General options

  • Static Analysis, see the C-STAT® Static Analysis Guide for more information about these options

  • Runtime Checking, see C-RUN Runtime Checking options for more information about these options

  • C/C++ Compiler

  • Assembler

  • Output Converter, options for converting ELF output to Motorola, Intel-standard, or other simple formats, see Output converter options.

  • Custom build, options for extending the toolchain

  • Build Actions, options for pre-build and post-build actions

  • Linker, available for application projects but not for library projects

  • Library builder, available for library projects but not for application projects

  • Debugger

  • Simulator

  • C-SPY hardware drivers, options specific to additional hardware debuggers.

Selecting a category displays one or more pages of options for that component of the IDE.

Factory Settings

Restores all settings to the default factory settings. Note that this option is not available for all categories.
