IAR Embedded Workbench for RX 5.20

How projects are organized

In this section:

The IDE allows you to organize projects in an hierarchical tree structure showing the logical structure at a glance.

The IDE has been designed to suit the way that software development projects are typically organized. For example, perhaps you need to develop related versions of an application for different versions of the target hardware, and you might also want to include debugging routines into the early versions, but not in the final application.

Versions of your applications for different target hardware will often have source files in common, and you might want to be able to maintain only one unique copy of these files, so that improvements are automatically carried through to each version of the application. Perhaps you also have source files that differ between different versions of the application, such as those dealing with hardware-dependent aspects of the application.

In the following sections, the various levels of the hierarchy are described.

Projects and workspaces

Typically you create one or several projects, where each project can contain either:

If you have several related projects, you can access and work with them simultaneously. To achieve this, you can organize related projects in workspaces.

Each workspace you define can contain one or more projects, and each project must be part of at least one workspace.

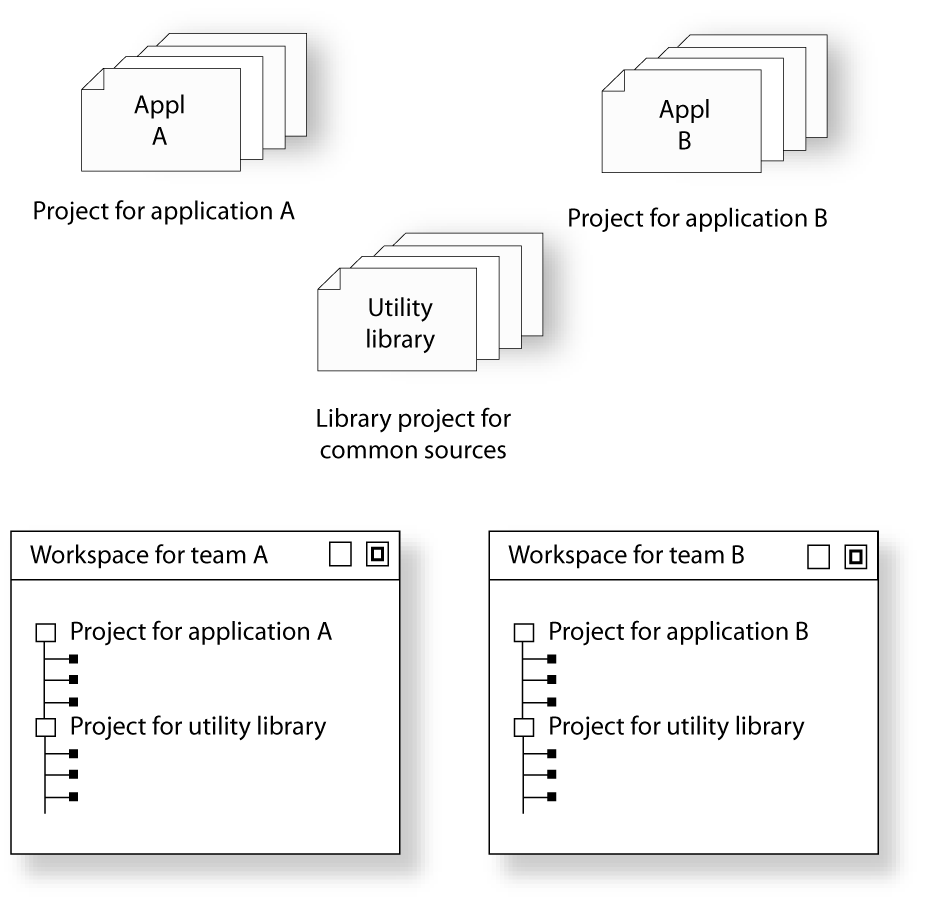

Consider this example: two related applications—for instance A and B—are developed, requiring one development team each (team A and B). Because the two applications are related, they can share parts of the source code between them. The following project model can be applied:

  • Three projects—one for each application, and one for the common source code

  • Two workspaces—one for team A and one for team B.

Collecting the common sources in a library project (compiled but not linked object code) is both convenient and efficient, to avoid having to compile it unnecessarily. This figure illustrates this example:

IDE1 70percent.png
Projects and build configurations

Often, you need to build several versions of your project, for example, for different debug solutions that require different settings for the linker and debugger. Another example is when you need a separately built executable file with special debug output for execution trace, etc. IAR Embedded Workbench lets you define multiple build configurations for each project. In a simple case, you might need just two, called Debug and Release, where the only differences are the options used for optimization, debug information, and output format. In the Release configuration, the preprocessor symbol NDEBUG is defined, which means the application will not contain any asserts.

Additional build configurations might be useful, for instance, if you intend to use the application on different target devices. The application is the same, but hardware-related parts of the code differ. Thus, depending on which target device you intend to build for, you can exclude some source files from the build configuration. These build configurations might fulfill these requirements for Project A:

  • Project A - Device 1:Release

  • Project A - Device 1:Debug

  • Project A - Device 2:Release

  • Project A - Device 2:Debug

Groups

Normally, projects contain hundreds of files that are logically related. You can define each project to contain one or more groups, in which you can collect related source files. You can also define multiple levels of subgroups to achieve a logical hierarchy. By default, each group is present in all build configurations of the project, but you can also specify a group to be excluded from a particular build configuration.

Source files and their paths

Source files can be located directly under the project node or in a hierarchy of groups. The latter is convenient if the amount of files makes the project difficult to survey. By default, each file is present in all build configurations of the project, but you can also specify a file to be excluded from a particular build configuration.

Only the files that are part of a build configuration will actually be built and linked into the output code.

Once a project has been successfully built, all include files and output files are displayed in the structure below the source file that included or generated them.

Note

The settings for a build configuration can affect which include files that are used during the compilation of a source file. This means that the set of include files associated with the source file after compilation can differ between the build configurations.

The IDE supports relative source file paths to a certain degree, for:

  • Project files

    Paths to files part of the project file are relative if they are located on the same drive. The path is relative either to $PROJ_DIR$ or $EW_DIR$. The argument variable $EW_DIR$ is only used if the path refers to a file located in a subdirectory of $EW_DIR$ and the distance from $EW_DIR$ is shorter than the distance from $PROJ_DIR$.

    Paths to files that are part of the project file are absolute if the files are located on different drives.

  • Workspace files

    For files located on the same drive as the workspace file, the path is relative to $PROJ_DIR$.

    For files located on another drive than the workspace file, the path is absolute.

  • Debug files

    If your debug image file contains debug information, any paths in the file that refer to source files are absolute.

Drag and drop

You can easily drag individual source files and project files from Windows Explorer to the Workspace window. Source files dropped on a group are added to that group. Source files dropped outside the project tree—on the Workspace window background—are added to the active project.
