I-jet Trace has a small—0.05 in x 1.4 in (1.35 mm × 3.5 mm)—external power connector right next to the USB connector. It can be used whenever the host computer is unable to deliver the necessary power to I-jet Trace and to the target board. The external power supply must deliver 5 V DC at 1 A minimum for I-jet Trace CM and 2 A minimum for I-jet Trace A/R/M.

When external power is connected, almost all power will be taken from the external power supply, allowing more power-consuming targets (up to 600 mA) to be powered by I-jet Trace.

The I-scope connector on the side of the probe is provided for connecting the legacy I-scope analog probe to the I-jet Trace.

This 30-pin connector is reserved for future use to add more functionality and features to I-jet Trace.

I-jet Trace CM comes with a MIPI-20 connector that allows a standard 20-pin flat cable (included) to connect to a target with a MIPI-20 male header. This target connection allows for JTAG/SWD/cJTAG debugging as well as 1, 2, or 4-bit ETM/N-Trace, or SWO trace.

The MIPI-20 pinout for I-jet Trace CM is the same as for I-jet.

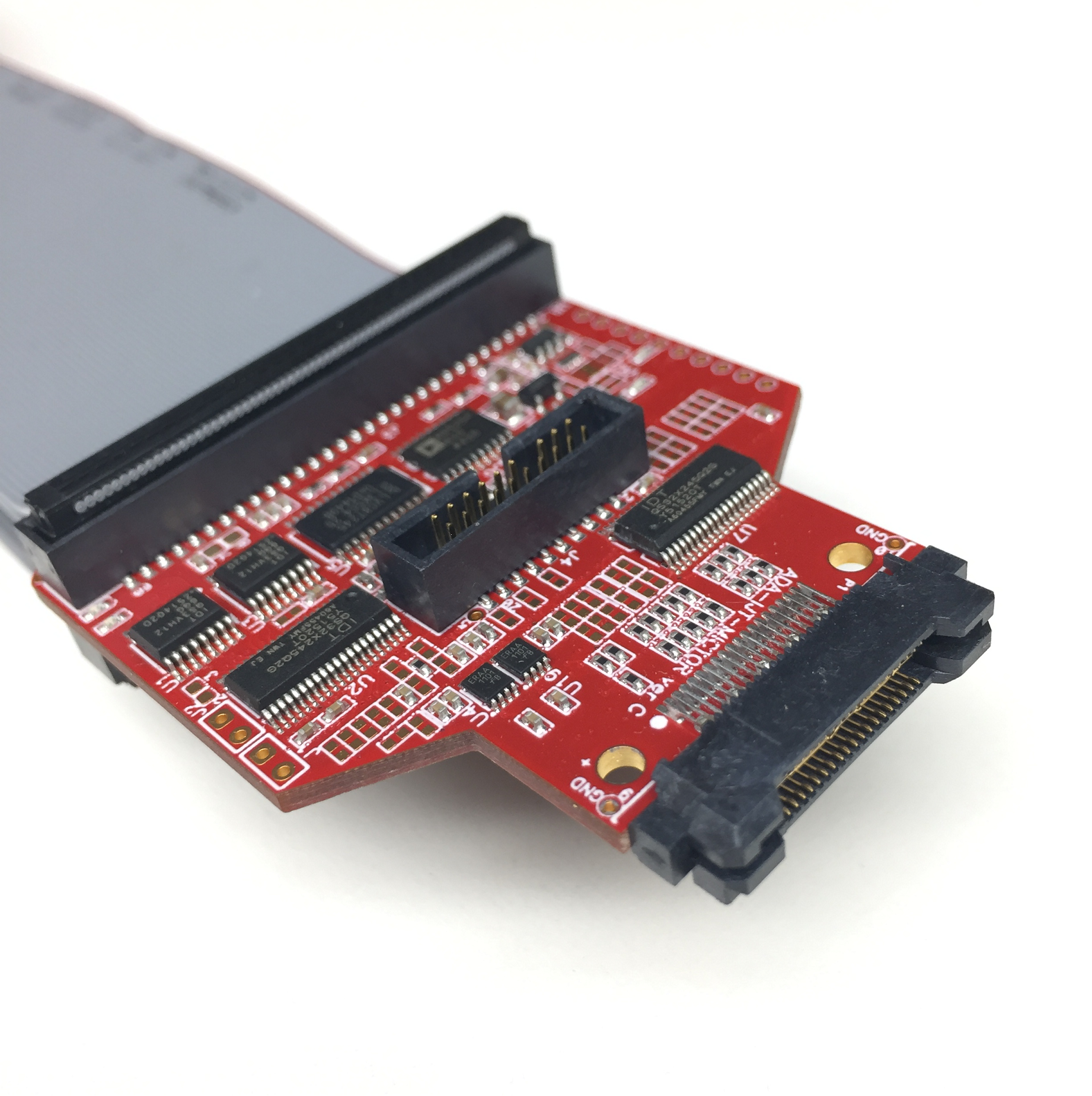

I-jet Trace A/R/M comes with two 60-pin flat cables that terminate in an adapter board with a Mictor-38 male connector that is designed to plug in directly into the target board.

The Mictor connector allows for JTAG/SWD/cJTAG/SWO debugging as well as for up to 16-bit wide ETM or N-Trace trace.

The adapter board also contains a standard MIPI-20 header for connecting to target boards without the Mictor connection.

This is the Mictor-38 pinout for I-jet Trace A/R/M:

The mating connector for Mictor-38 on target board is AMP/Tyco 5767054-1.
