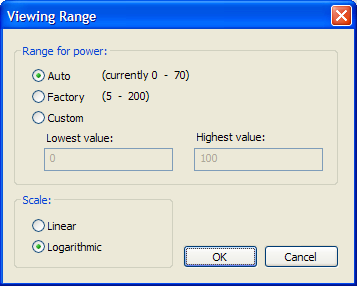

Viewing Range dialog box

In this section:

The Viewing Range dialog box is available from the context menu that appears when you right-click in any graph in the Timeline window that uses the linear, levels or columns style.


Use this dialog box to specify the value range, that is, the range for the Y-axis for the graph.

Requirements

One of these alternatives:

  • The C-SPY Simulator. (Not for all cores and devices.)

  • The C-SPY I-jet driver

  • The C-SPY J-Link/J-Trace driver

  • The C-SPY ST-LINK driver

  • The C-SPY TI XDS driver

Range for ...

Selects the viewing range for the displayed values:

Auto

Uses the range according to the range of the values that are actually collected, continuously keeping track of minimum or maximum values. The currently computed range, if any, is displayed in parentheses. The range is rounded to reasonably even limits.

Factory

For the Power Log graph—Uses the range according to the properties of the measuring hardware (only if supported by the product edition you are using).

For all other graphs—Uses the range according to the value range of the variable, for example 0–65535 for an unsigned 16-bit integer.

Custom

Use the text boxes to specify an explicit range.

Scale

Selects the scale type of the Y-axis:

  • Linear

  • Logarithmic
