Macro Registration window

In this section:

What do you want to do?

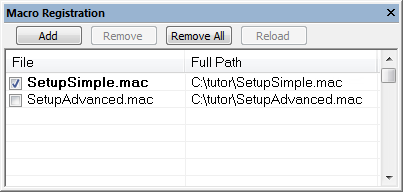

The Macro Registration window is available from the View>Macros submenu during a debug session.


Use this window to list, register, and edit your debugger macro files.

Double-click a macro file to open it in the editor window and edit it.

Requirements

Can be used with all C-SPY debugger drivers and debug probes.

Display area

This area contains these columns:

File

The name of an available macro file. To register the macro file, select the check box to the left of the filename. The name of a registered macro file appears in bold style.

Full path

The path to the location of the added macro file.

Context menu

This context menu is available:


These commands are available:

Add

Opens a file browser where you can locate the macro file that you want to add to the list. This menu command is also available as a function button at the top of the window.

Remove

Removes the selected debugger macro file from the list. This menu command is also available as a function button at the top of the window.

Remove All

Removes all macro files from the list. This menu command is also available as a function button at the top of the window.

Reload

Registers the selected macro file. Typically, this is useful when you have edited a macro file. This menu command is also available as a function button at the top of the window.

Open File

Opens the selected macro file in the editor window.

Open Debugger Macros Window

Opens the Debugger Macros window.
