IAR Embedded Workbench for RH850 3.20.x

Customize dialog box

In this section:

What do you want to do?


The Customize dialog box is available by clicking the Toolbars Options button on the far right end of the a toolbar in the main IDE window and choosing Add or Remove Buttons>Customize.

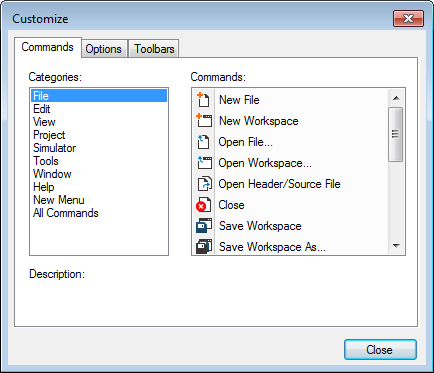

These are the options on the Commands page of the Customize dialog box:

Categories

Lists the menus in the IDE. Select a menu name to make the commands on that menu available for adding as buttons to a toolbar. Select New Menu to add a custom drop-down menu to a toolbar.

Commands

Lists menu commands that can be dragged to one of the toolbars and inserted as buttons. If New Menu is the selected Category, the command New Menu can be dragged to a toolbar to add a custom drop-down menu to the toolbar. Commands from the Commands list can then be dragged to populate the custom menu.

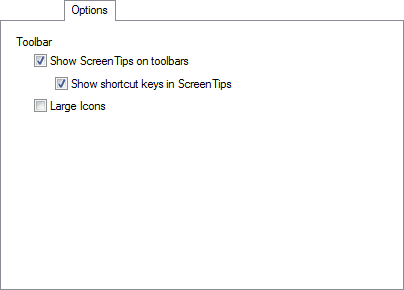

These are the options on the Options page of the Customize dialog box:

Show Screen Tips on toolbars

Enables tooltips for the buttons on the toolbars. The tooltips contain the display names of the buttons.

Show shortcut keys in Screen Tips

Includes the keyboard shortcut in the tooltip text for the buttons on the toolbar.

Large Icons

Increases the size of the buttons on the toolbars.

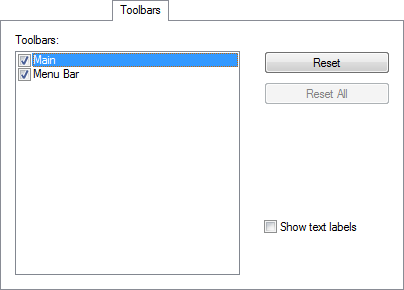

These are the options on the Toolbars page of the Customize dialog box:

Toolbars

Select/deselect a toolbar to show/hide it in the main IDE window. The menu bar cannot be hidden.

Reset

Restores the selected toolbar to its default appearance.

Reset All

This button is disabled.

Show text labels

Displays the names of the buttons on the selected toolbar.
