IAR Embedded Workbench for RL78 5.20

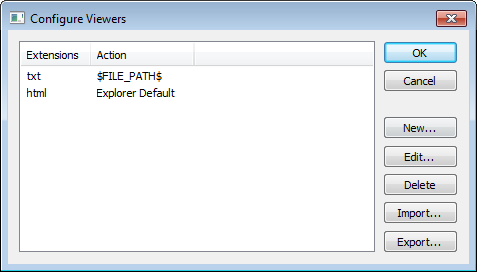

Configure Viewers dialog box

In this section:

The Configure Viewers dialog box is available from the Tools menu.


This dialog box lists overrides to the default associations between the document formats that IAR Embedded Workbench can handle and viewer applications.

Display area

This area contains these columns:

Extensions

Explicitly defined filename extensions of document formats that IAR Embedded Workbench can handle.

Action

The viewer application that is used for opening the document type. Explorer Default means that the default application associated with the specified type in Windows Explorer is used.

New

Displays the Edit Viewer Extensions dialog box, see Edit Viewer Extensions dialog box.

Edit

Displays the Edit Viewer Extensions dialog box, see Edit Viewer Extensions dialog box.

Delete

Removes the association between the selected filename extensions and the viewer application.

Import

Opens a file browser where you can locate and import a File Viewer Association file in XML format. This file contains associations between document formats and viewer applications.

Export

Displays a standard Save As dialog box to let you save the current associations between document formats and viewer applications in the Configure Viewers dialog box to a file in XML format.
