Displays the Performance Analysis Setup dialog box where you configure the measurement. See Performance Analysis Setup dialog box.

Clears all data in the selected row of the display area. If no row is selected, all data is cleared.

Enables or disables the performance analysis. Disabling the analysis does not clear already collected data; re-enabling the analysis and running more passes will append the new data to the previously collected data.

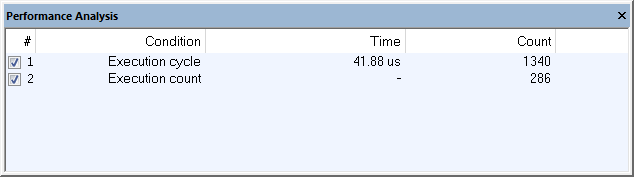

The number of the analysis counter. The numbers are 1 and 2 when a 32-bit counter is used for both of two ranges or 1 when the two 32-bit counters are handled as a 64-bit counter for measurement of performance in a single address range.

The checkboxes enable/disable each counter.

Indicates the measurement type. See the description for the Performance Analysis Setup dialog box.

The cumulative total of the analyzed execution.

If the measurement type in the Condition column is cycles, the time is calculated from the operating frequency value and the value in the Count column.

If the measurement type in the Condition column is a count, this column displays a –.

A decimal value that indicates the number of times the measurement has been performed. Any overflows will be indicated.
